Data-Intensive Test Solutions
Advanced test solutions for high-bandwidth high-volume data applications
AESA Radars, Distributed Sensors, Targeting & Guidance Systems, Streaming Video, Networking Communications

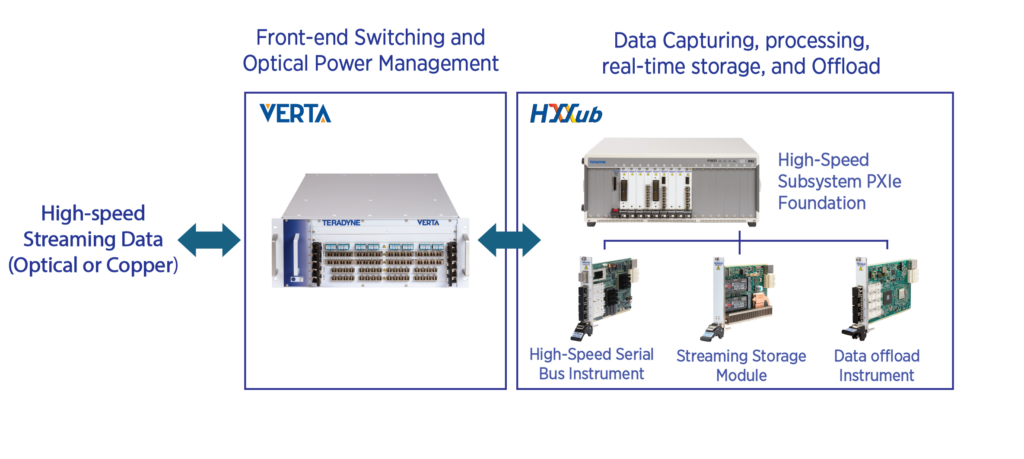

Streaming Data Test System
Data-intensive test applications with large number of distributed sensors, processors, and computers require large-scale/high-speed data capture, low-latency data analysis, real-time storage, and fast data offload. Teradyne Streaming Data Test System provides fully integrated capabilities for such test applications.
Switching and Optical Test Instruments
- High speed switch matrix accommodates UUT with large number of data ports with optical or copper connections
- Optical power control and measurement modules provide inline parametric measurement capability to verify the UUT fiber optic power levels are within specifications
- Scalable, expandable multi-slot chassis supports future channel expansion

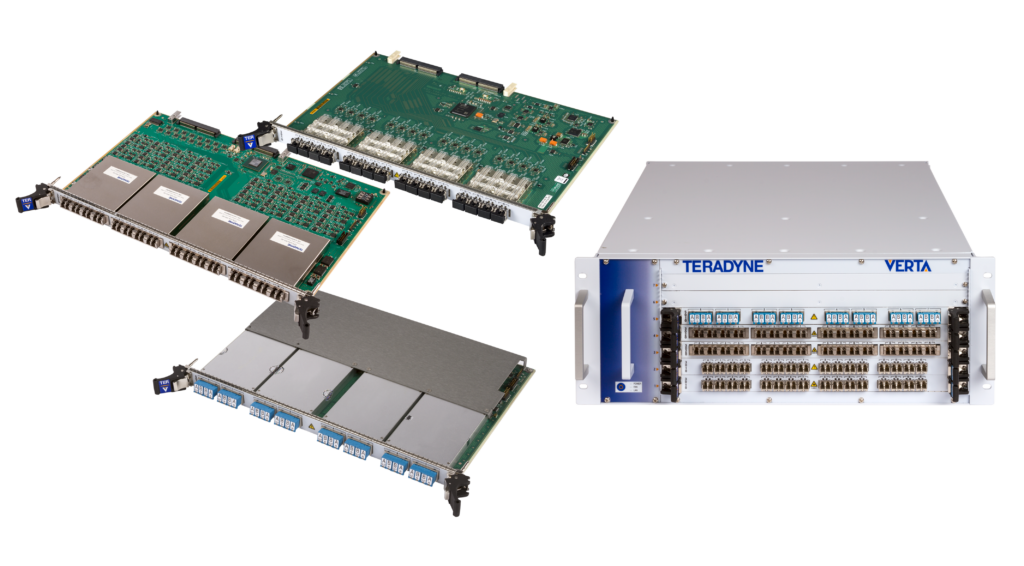

VERTA Optical Test and Switching
High Speed Bus Test Instruments
- Serial and hybrid PXIe bus test instruments provide high-bandwidth, low-latency data test capability, supporting a variety of bus protocols including custom buses
-
- HSSub-6100: Multi-protocol, 8 serial ports at 12.5 Gb/s
- HSSub-6140: Multi-protocol, LVTTL/LVDS ports, and 8 serial ports at 8 Gb/s
- AIT PXIe-25G: Fibre Channel and Ethernet from 1Gb/s up to 100Gb/s, supports full line rate operations
- HSSub-6310 Streaming Storage module performs peer-to-peer, multi-stream data capture and storage across PXIe backplane
- HSSub-6091 Ethernet instrument provides reliable back-end data offload capability
- Software-defined reconfigurability allows instruments reuse for future test requirements

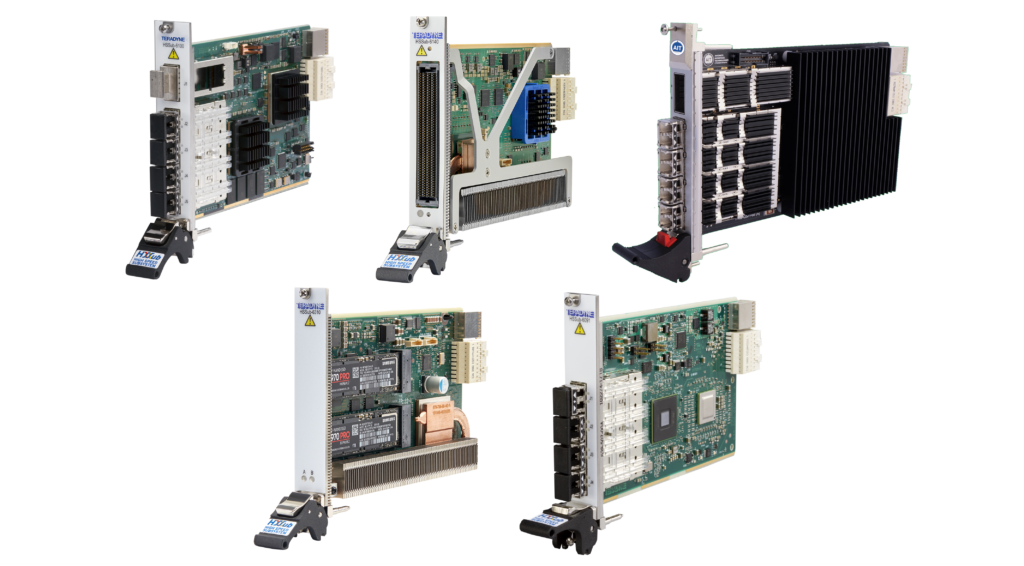

Bus Instruments for Data Processing
Test Applications
