Spectrum Series
Family of Functional Test Systems
Configurable. Scalable. Fully-Integrated.
Flexible, scalable, open architecture. Supporting a variety of test applications throughout the entire product life cycle. Simplifying upgrades and modernization as requirements change.
The Spectrum Series Systems address a wide ranges of test challenges, offering a scalable and cost-effective approach to testing mission-critical electronics from circuit cards, higher-level assemblies, or a Line Replaceable Units. The fully integrated, standard system includes system cooling, self-test, wire verification test, and an extensive documentation package.
Multiple system models are optimized for price and flexibility, addressing different test requirements in labs, factories, depots, and I-level repair facilities.
Spectrum BT Focused Functional Test System
- PXI and LXI centric
- 10U Bench top (Additional 11U with mobile cart option)
- Optimized for point-solution, a focused set of test requirements and UUTs
- Low-cost, compact
- Fully compatible with Spectrum HS software, cables, and fixtures
Spectrum HS Versatile, Cost-Effective Functional Test System
- PXI and LXI centric
- 35U (Multi-bay options available)
- Optimized for Multi-program, Multi-mission testing
- Flexible and adaptive platform for current and future technology
- Fully compatible with Spectrum BT software, cables and fixtures
Spectrum-9100 Focused Functional Test System
- PXI and LXI centric
- 35U (Multi-bay options available)
- Optimized for Multi-program, Multi-mission testing
- Flexible and adaptive platform for current and future technology
- Fully compatible with Spectrum BT software, cables and fixtures
Solutions & Applications
The Spectrum Series Systems can be configured with Teradyne, third-party, and customer-specific instruments or subsystems. All platforms support both standard and reconfigurable instruments, providing endless test application possibilities. Teradyne offers pre-configured Spectrum systems as well as customer-specific configurations.

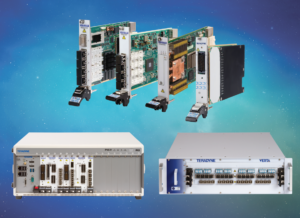

Configure the Spectrum Systems with large portfolio of Teradyne instruments and subsystems

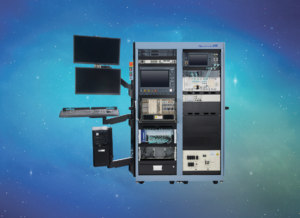

Tackle complex test requirements with multiple advanced test technologies packaged in the fully-integrated Mixed-Technology Test Systems

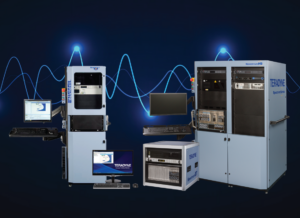

Address common RF test requirements with Spectrum RF Preconfigured Test Systems
Scalable Common Test Solution
The Scalable Common Test Solution leverages common equipment and software over every life cycle test stage. System flexible sizing and compatibility across platforms help preserve Test Program Set (TPS) investments (both software and interface hardware), minimize user training costs, and provide cost-effective approaches to handling multiple programs at multiple production and depot sites.
